German HBM 1-RTNC3/470tLoad CellIt belongs to the torsion ring type weighing sensor, with a range of 1T to 470T and an accuracy of C3. Due to the use of a unique ring strain gauge and the very low height of the product, the RTNC3 weighing sensor can significantly reduce the impact of lateral and lateral loads, making it very suitable for weighing various large material tanks and truck scales.
. Introduction to German HBM 1-RTNC3/470t Load Cell Products
1. High precision - outstanding technical features
(1) High precision and high signal-to-noise ratio, due to the use of 2.85 mV/V output signal
(2) Due to the special design of annular Strain gauge, excellent compensation for transverse load can be achieved
(3) High input resistance (> 4350 ohms) ensures smaller current loss
(4) Trade scale weighing system, up to 3000 d (OIML R60)
2. Can be used in harsh environments - stainless steel measuring body, with IP68 protection level (optional: IP69K), and can be used in potentially explosive environments
(1) Stainless steel material, corrosion-resistant
(2) Corrosion resistant chemicals and moisture resistant
(3) Temperature range from -30 ° C to+80 ° C (optional up to+110 ° C)
(4) Provide explosion-proof version (such as IECEx AI 1/21)
(5) Can provide braided cables
(6) Overvoltage protection (optional)
3. Widely applicable and flexible - multiple accessories and models available
(1) Compact structure with low overall height
(2) Eccentric load compensation
(3) 14 rated ranges, 3 sizes
(4) Multiple lengths of cables.
(5) Provide connection plug (M12)
(6) RTN/M weighing module for easy integration

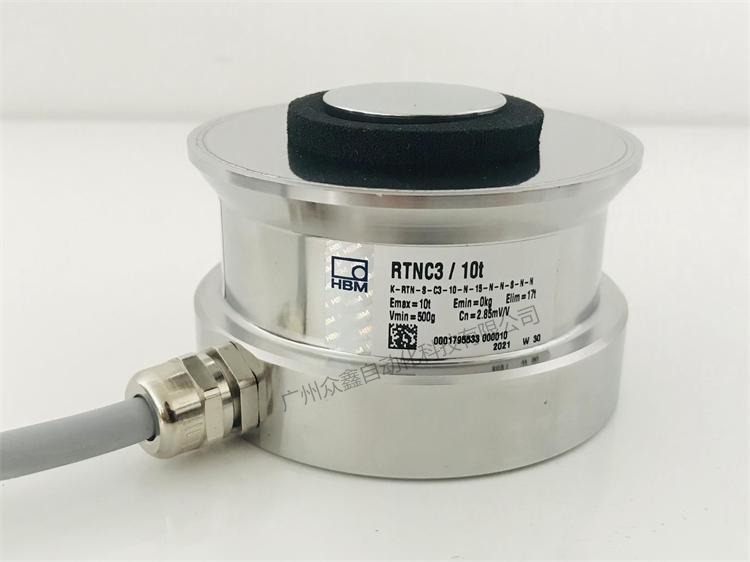

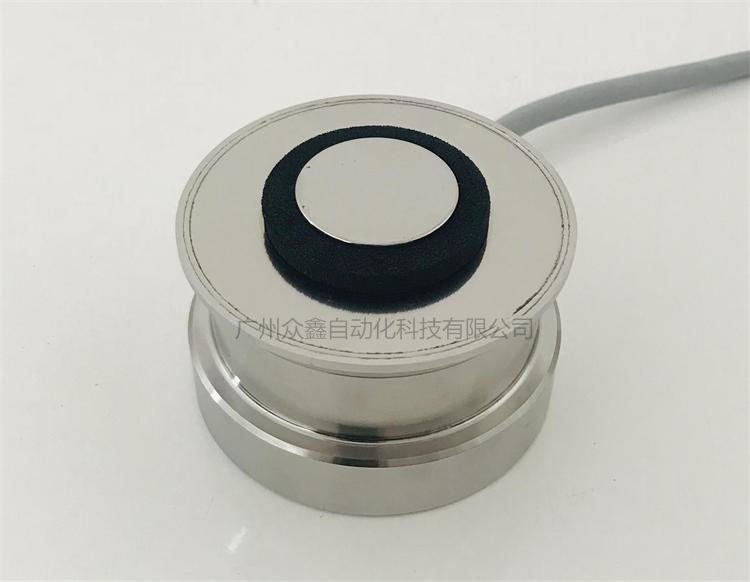

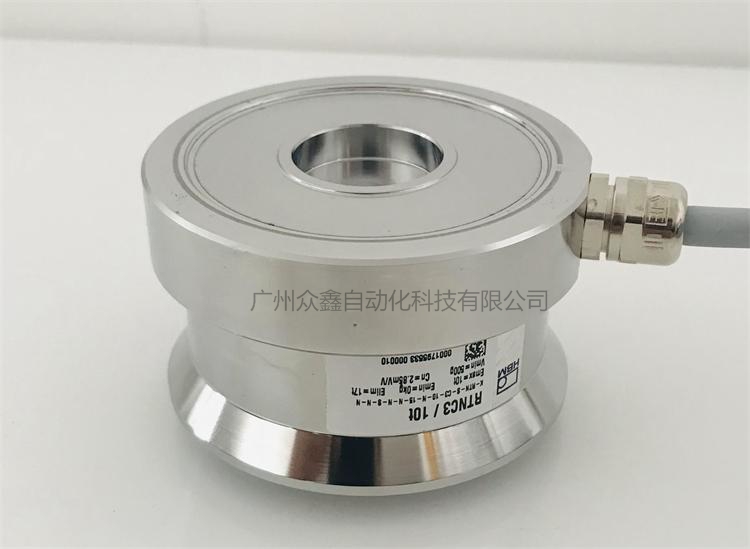

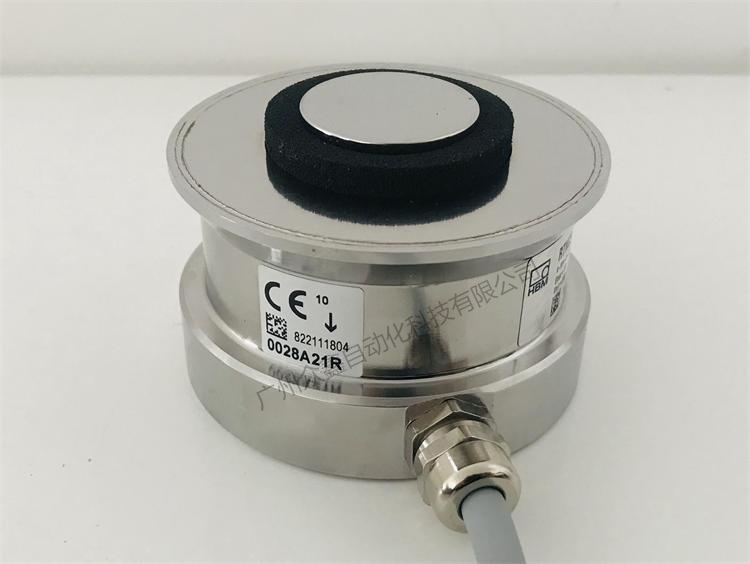

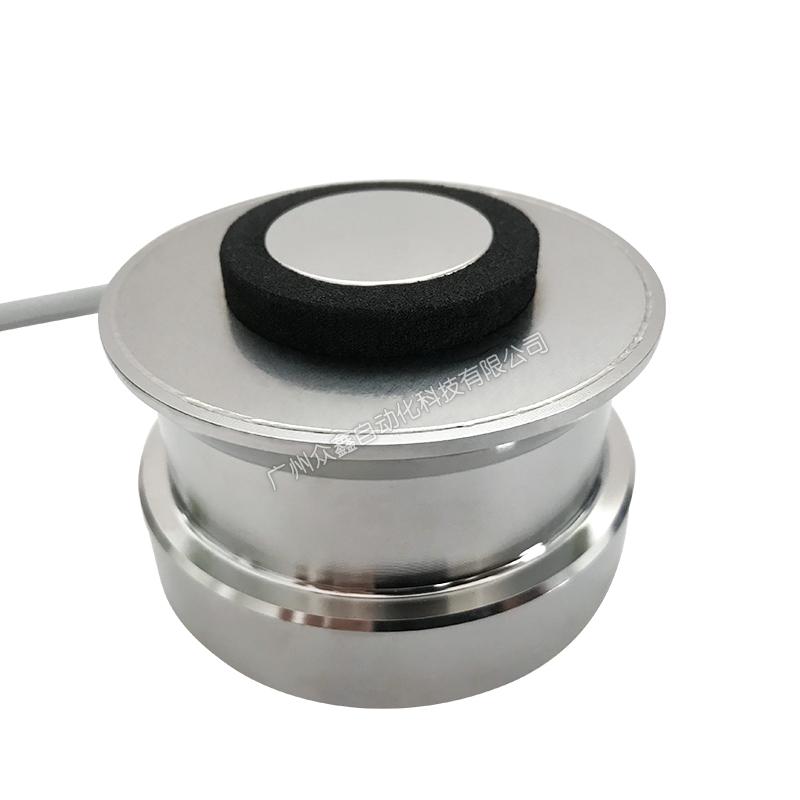

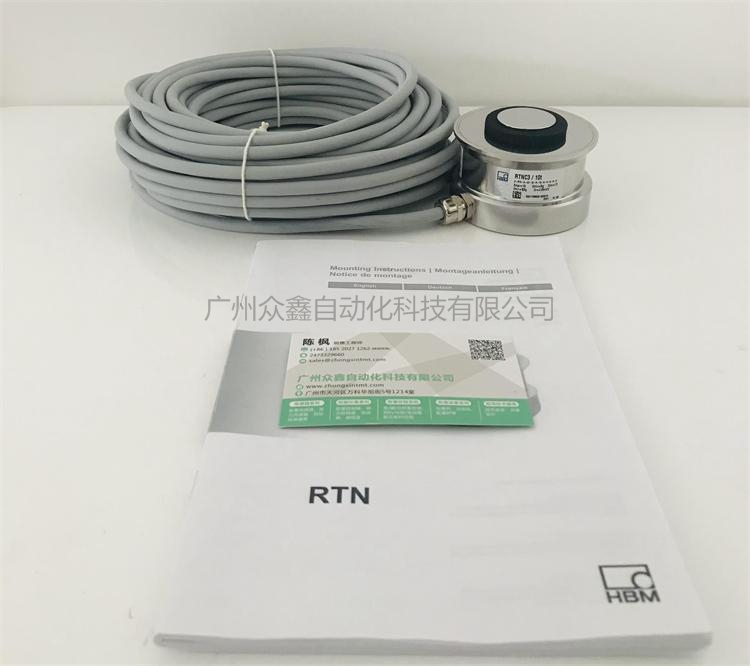

. Actual photo of German HBM 1-RTNC3/470t weighing sensor
. German HBM 1-RTNC3/470t load cell related models
1-RTNC3/1t load cell
1-RTNC3/2.2t load cell
1-RTNC3/4.7t load cell
1-RTNC3/10t load cell
1-RTNC3/15t load cell
1-RTNC3/22t load cell
1-RTNC3/33t load cell
1-RTNC3/47t load cell
1-RTNC3/68t load cell
1-RTNC3/100t load cell
1-RTNC3/150t load cell
1-RTNC3/220t load cell
1-RTNC3/330t load cell
1-RTNC3/470t load cell

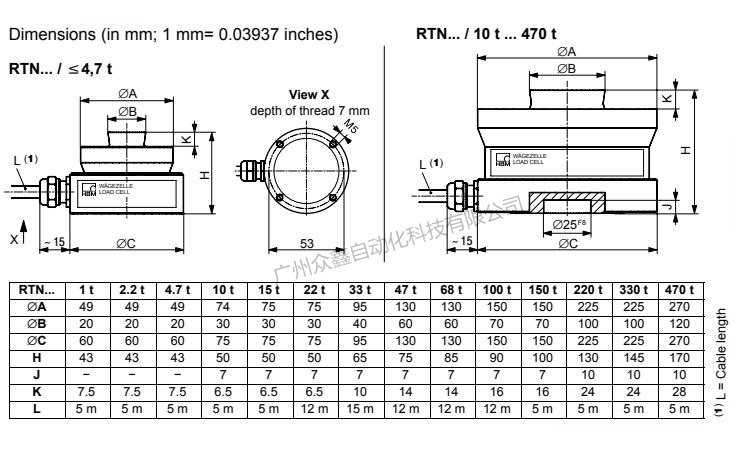

. German HBM 1-RTNC3/470t weighing sensor product dimensions
. Technical parameters of German HBM 1-RTNC3/470t weighing sensor product
. Safety instructions for German HBM 1-RTNC3/470t load cell
1. The RTN series weighing sensors are designed for weighing applications and should not be considered compliant with relevant regulations for any other purpose.
2. To ensure safe operation, the load cell can only be used according to the instructions in the installation instructions. During use, it is also necessary to comply with the relevant legal and safety requirements of the application. This also applies to the use of attachments.
3. If the load cell is damaged, it may cause equipment damage or endanger personal safety. Therefore, users must take appropriate safety measures (such as safety devices to prevent falling, collapsing, or overloading). For safe and trouble-free operation, the weighing sensor must not only be transported, stored, positioned, and installed correctly, but also be carefully operated and maintained to avoid overload use.
4. The maximum load of the 1-RTNC3/470t weighing sensor is 470t. When using it, attention should be paid to the possibility of instantaneous overload, which may also cause damage to the sensor.
