1、 Product Introduction of PS-2010W Weight Transmitter
Product Series: PS-2010W
Product type: DIN rail mounted weight transmitter
Product Introduction
(1) The PS-2010W model provides high performance for applications that require small, simple, and fully functional weight transmitters and controllers. The packaging of PS-2010W resembles a mini PLC "brick" that can be installed on DIN rails inside existing cabinets. The standard RS-485 serial port easily interfaces with PLC/DCS systems using traditional ASCII protocol. Provide 16 bit resolution 4-20mA analog current output. The PS-2010W has a counting resolution of 700000 and an unfiltered sampling rate of 8 ms, making it ideal for high-speed batch process control, automatic weight checking, and continuous feeding applications.
(2) Use integrated LCD display and keyboard components or optional Weight View PC software for simple setup and calibration. In any case, Plug-n-Weigh technology eliminates the need for test weights in most applications and greatly simplifies the calibration of the systems that need to be loaded. In addition to Plug-n-Weigh, the standard device also includes dynamic digital filtering and complete set point functions such as master, dribbling, and in-flight compensation.
(3) Eight high-speed setpoints provide precise control for time critical applications.
Product Features:
(1) Compact Full Function Weight Indicator - Controller
(2) DIN rail mounting shell
(3) 700000 counting resolution; Eight millisecond sampling rate
(4) Dynamic digital filtering with online diagnostic function
(5) 8 open collector discrete set point outputs with main (coarse) and drop (fine) operations
(6) Driven by a high-speed set value of 120 updates per second
(7) 4-20mA current output
(8) LCD weight and status display
(9) Remote input function - zero point, tare weight, gross weight, net weight, printing
(10) Additional equipment: 24 VDC operation (requires external power supply)
Application:
(1) Batch processing and hybrid systems
(2) Reactor vessel
(3) Belt mixer
(4) Process weighing and control system
2、 Technical data of PS-2010W weight transmitter
3、 PS-2010W weight transmitter product size

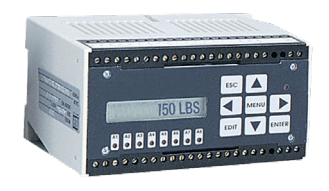

4、 Product picture of PS-2010W weight transmitter
