1、 WIN5 Weighing Instrument Product Introduction
Product series: WIN5
Product Type: Weighing Instrument
Product Introduction
(1) The WIN 5 weight indicator is designed for easy operation of weighing sensors in industrial applications. The indicator is equipped with operation buttons that allow for: tare weight setting; Zero setting of empty balance; And display the gross and net weight values. The reading for measuring quality is displayed on a 6-digit LED screen. The relay control output can adjust the level of the measurement signal and control it according to the level value. The indicator software supports two calibration methods: data table calibration or static weight calibration. In addition, the indicator is equipped with an analog current output. This indicator can be used on a 24 VDC or 230 VAC power supply.
Product Features:
(1) Used in conjunction with the weighing sensor in the weighing measurement system
(2) Input: Weighing sensor -4 or 6 wires; 1 x number
(3) Output: 2 x relays; 1 x Simulation
(4) Static Weight Calibration Data Sheet
(5) Protection level IP 65
（6）RS-485 / Modbus RTU
(7) Signal peak detection
Application:
(1) Process weighing

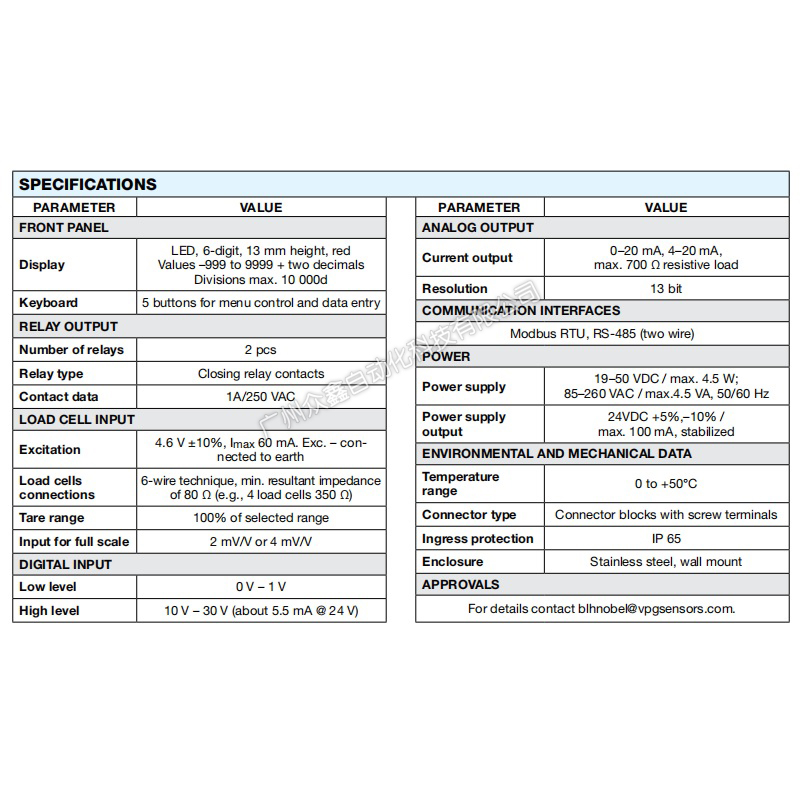

2、 WIN5 Weighing Instrument Technical Data

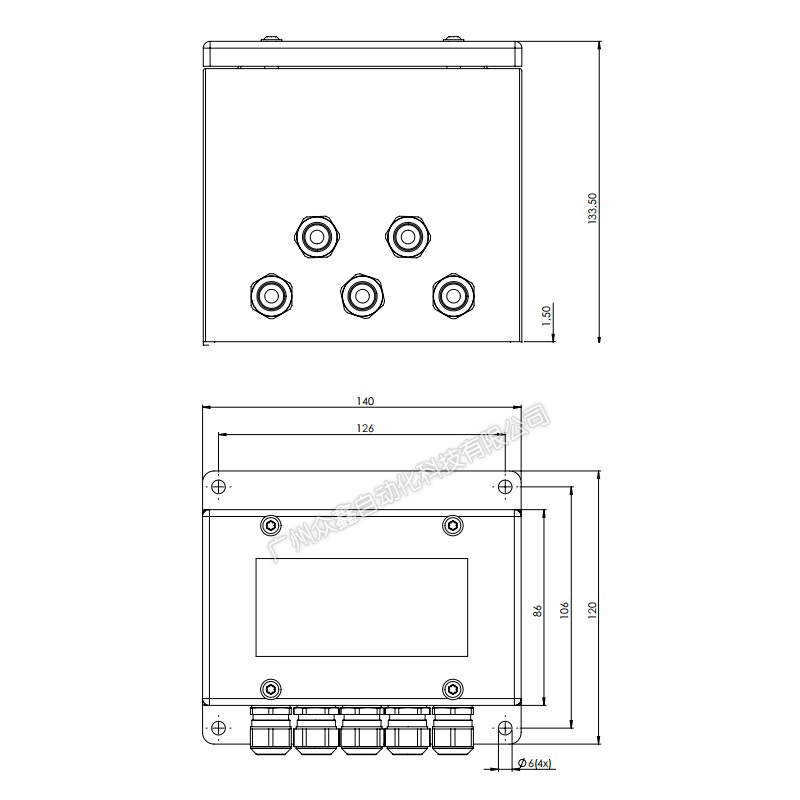

3、 WIN5 weighing instrument product size

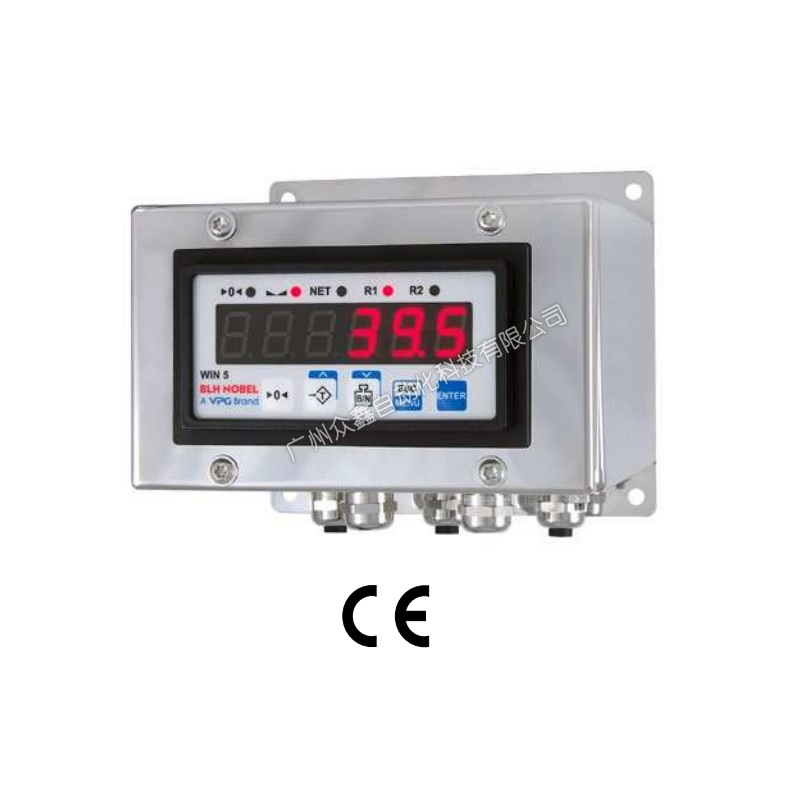

4、 WIN5 weighing instrument product picture
