PR6241/23D1 2T load cell, Germany Inteco (Sedolis) sensor

product details

1、 Germany Intec PR6241/23D1 Load Cell Product Introduction

. Product Introduction

　　Minebea-intec (Sartorius), GermanyBrandedThe PR6241 S-type pressure sensor is specifically designed for weighing small and medium-sized process vessels and for high-precision measurement Applied to explosion-proof applications 20.2 22 and FM DIV Zone 1

　　PR 6241 series Load cell It is specially designed for weighing small and medium-sized process containers and high-precision ingredients The unique design principle, combined with the FlexLock installation kit, enables it to balance the vibration caused by machinery or container Thermal expansion and support structure

. Product features:

(1) Easy to install and use

(2) Easy to use matching sensor consistency output

(3) All stainless steel structure

(4) Wide temperature adaptation range

(5) Shockproof

(6) Sealed welding, IP68 protection level (immersed in 1.5m underwater for 10000 hours)

(7) Provide explosion-proof models

(8) W& M certification (OIML R60)

Application case:

(1) Filling volume control

(2) Filling and metering

(3) Weighing

2、 Technical parameters of German Intec PR6241/23D1 Load cell products

Sensor structure

S-shaped design, integrated load All stainless steel structure, sealed welding, inert gas filling

Materials

Sensor: 1.4542 (DIN 17440) similar to S604, S622 (B.S.), 17-4PH

Protection

IP 68, IEC 529 (equivalent to NEMA 6) The sensor can be submerged in 1.5m of water for 10000 hours

Strong and flexible; Sheath: TPE Thermopel Elastomere, color: gray (explosion-proof: blue); Diameter: 5 mm, cable 4 x 0.35 mm2; Length: 5 meters

Bending radius

Fixed installation:≥ 50mm; Flexible installation:≥ 150mm

PR 6241/ E certification certificate

EX: II 1G EEx ia IIC T6, II 1D IP65 85° C; Registration number: PTB 02 ATEX 2059, TÜ V 03 ATEX 2301x

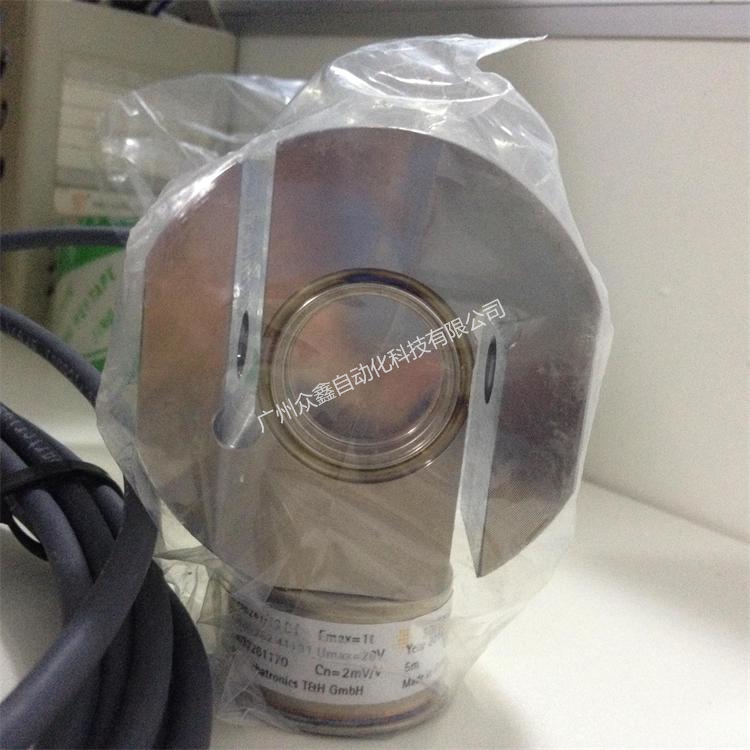

3、 Real shot of Germany's Minebea-intec PR6241 Load cell product

4、 Introduction to the PR6241 Load Cell Product Model of Germany Intec

PR6241/12D1 (with a range of 100kg)

PR6241/22D1 (with a range of 300kg)

PR6241/32D1 (with a range of 300kg)

PR6241/52D1 (with a range of 500kg)

PR6241/13D1 (with a range of 1t)

PR6241/23D1 (with a range of 2t)

PR6241/33D1 (with a range of 3t)

PR6241/53D1 (range 5t)

PR6241/22C3 (with a range of 200kg)

PR6241/32C3 (with a range of 300kg)

PR6241/52C3 (with a range of 500kg)

PR6241/13C3 (with a range of 1t)

PR6241/23C3 (with a range of 2t)

PR6241/33C3 (with a range of 3t)

PR6241/53C3 (range 5t)

PR6241/22C6 (with a range of 200kg)

PR6241/32C6 (with a range of 300kg)

PR6241/52C6 (with a range of 500kg)

PR6241/13C6 (with a range of 1t)

PR6241/23C6 (with a range of 2t)

PR6241/33C6 (range 3t)

5、 PR6241/23D1 Load cell product size from Germany Intec
