1、 Product Introduction of H8H-C3-250kg-3B Weighing Sensor
Product brand: ZEMIC
Product series: H8H
Product Type: Cantilever Beam Load Cell
Product range: 250kg, 500kg, 1t, 2t, 2.5t, 3t, 5t
Product features:
(1) Alloy steel material, nickel plated, single shear beam structure, adhesive sealing, compression bearing (H8H).
(2) Stainless steel material, single shear beam structure, welded and sealed, pressure bearing (BM8H).
(3) H8H protection level IP67; BM8H protection level IP68.
(4) Suitable for weighbridges, inspection lines, platform scales, hopper scales, and various electronic weighing equipment.
(5) OIML certification, certificate number (BM8H): R60/2000-NL1-12.15
(6) PTB certification, certificate number (BM8H): R60/2000-DE1-10.09 Revision 1
(7) NTEP certification, certificate number (BM8H): 10-056A2
2、 H8H-C3-250kg-3B Load Cell Related Models
H8H-C3-5t-6B
H8H-C3-3t-6B
H8H-C3-2.5t-6B
H8H-C3-2t-6B
H8H-C3-1t-3B
H8H-C3-500kg-3B
H8H-C3-250kg-3B
3、 Picture of ZEMIC brand H8H weighing sensor product

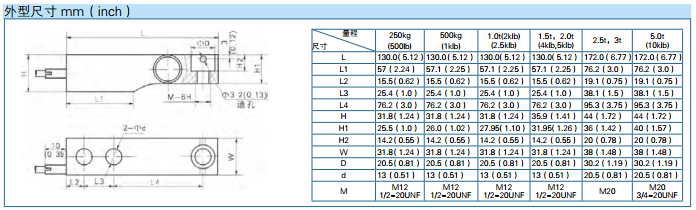

4、 ZEMIC brand H8H-C3-250kg-3B weighing sensor product dimensions

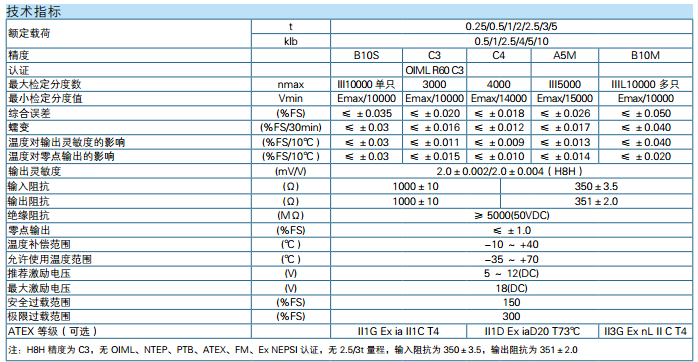

5、 Technical parameters of ZEMIC brand H8H-C3-250kg-3B weighing sensor
