1、 AMI Load Cell Product Introduction
Product brand: SUNCELLS, USA
Product series: AMI
Product type: Single point weighing sensor
Product material: aluminum alloy
Product range: 5kg to 500kg
Product shape: There are two types of shapes for AMI sensors, distinguished by range, namely 5kg to 40kg and 50kg to 500kg
Product application scope: platform scale, table scale
2、 AMI weighing sensor product model
AMI-5kg
AMI-6kg
AMI-8kg
AMI-10kg
AMI-15kg
AMI-20kg
AMI-30kg
AMI-35kg
AMI-40kg
AMI-50kg
AMI-60kg
AMI-100kg
AMI-150kg
AMI-200kg
AMI-250kg
AMI-300kg
AMI-500kg

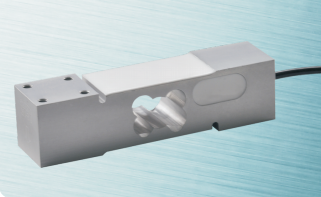

3、 Real photo of AMI weighing sensor
4、 AMI Load Cell Product Dimensions
5、 Technical parameters of AMI weighing sensor
Extended Reading
The Origin of Single Point Load Cell
In the discussion at the first International Industrial Weighing and Force-measuring Exhibition in 1979, a new term emerged in the terminology of sensors: "single point" force sensing. The latest generation of retail scales did not include any auxiliary flexors supporting the upper weighing software platform, which was rigidly fixed to the center sensor. The design of this type of single point force sensor is based on the principle of parallelogram, but an additional central cross beam should be provided for the strain gauge to complete the task of measuring the beam and deflection components in the top and bottom components of the parallelogram. Its advantage is that the strain gauge leaves the position where there is a twisting effect caused by eccentric loading, while increasing the rigidity of the structure. This type of force sensor is subjected to eccentric loading tests at the manufacturing plant. Apply 1/3 of the sensor's ultimate load in different directions within a radius of 200 millimeters. Each sensor must operate within ± 1/3000 of the center reading value, a typical design. Another eye-catching new news in the field of force sensors is the promotion and application of the principle of gyroscopes. The gyroscopic force measurement system utilizes the proprietary characteristics of the gyroscope, making it a precise, linear, and reproducible force sensor. After studying the anti hysteresis, anti drift, and anti temperature effects of this force sensor, the gyroscopic force measurement system can transmit direct digital signals to the display unit with high anti-interference performance. These characteristics make it completely independent of harsh environmental conditions. The rotor of the gyroscope rotates at a constant speed, and the horizontal axis of the rotor is installed in a universal support. There is an external universal support suspended by a movable joint, which also supports one end of the rotatable lever under the yoke.
The above are [AMI sensors] AMI-50kg~AMI-500kg_ The detailed information of the Suncells weighing sensor in the United States, if you are interested in [AMI sensor] AMI-50kg~AMI-500kg_ If you have any questions about the price, delivery time, model, or inventory of the Suncells weighing sensors in the United States, please feel free to call18520271262Chen GongObtain [AMI sensor] AMI-50kg~AMI-500kg_ The latest price details of the Suncells load cell in the United States.
